Our first display compatible with both the American and European mounting system simultaneously.

Adquio Wall Screen 8"

High quality touch screen designed to work continuously without interruption 24/7.
Due to its features, it is perfect to act as HMI, and as support for the Casambi control app. It is installed in the standard space of a European or American switch. Facilitates Casambi installations by being able to interact directly with it without the need for a cell phone.

Once the installation is finished, the customer can activate his scenes from this screen, or he can have a customized HMI, where he will only have access to the necessary controls of his installation.

When working with a custom HMI it takes the data from an Adquio controller and allows a completely free design of the user interface.

Additionally, being an Android device, you can use it with your Alexa APP, Home Assistant, etc. without problems. Enjoy a device that protrudes only 13 mm from your wall, including the fixing system, and also as it is powered from the back, it is installed in a totally clean way and without visible cables.

Contact Request presentation

SPECIFICATIONS

Adquio Wall Screen 8"

General data

8-inch screen.
1280 X 800 pixels.
LED backlighting.
IPS technology.
Capacitive touch panel.
High quality construction.
Android 13 and Play Store.
Casambi App preinstalled.
Wifi N 2.4/5 GHz and Bluetooth Version 4.2.
100 Mb/s Ethernet connection with IEEE 802.3 at/af POE.
12 V DC or POE power supply.
Vertical or horizontal installation.
Compatible with three mounting systems, generic wall mounting, European mounting box or American mounting box.
It protrudes from the wall by only 13 mm, and this includes the anchoring system.
Designed for continuous operation.

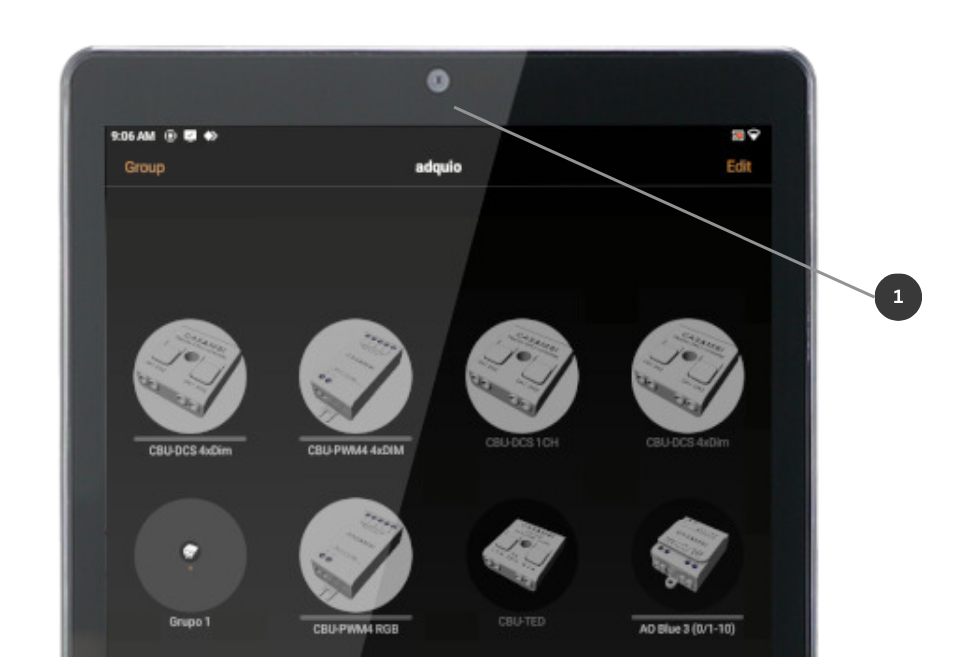

Front data

Front camera.

Connections

DC power supply 12 V (Available here)
Port 485 (For future use)
Ethernet 100 Mb/s POE IEEE 802.3 at/af.

Upper elements

Microphone.
Slot for Micro SD card.
USB Type-C OTG port.
Set button (Only used in factory)
Reset button (Press gently with a sharp object)
Microphone.

Lower elements

Speaker.
Mounting screw for the bracket.
Speaker.

Installation

The installation is very simple, in the space of a standard switch, both European and American, with a box of 60 or 81.5 mm between horizontal screws, you can install the screen support (black piece in the image).

Then you have two options:

Simply power it at 12 V and you are ready to go.
We can provide you with the appropriate power supply.
We recommend that you install it in the junction box closest to your screen.
The device can connect to your wifi, and will connect via Bluetooth to your Casambi network.
Provide you with a wired network connection with POE.
This is the most reliable option, but also the most complex.
This is a good option for new construction where the network cables are already pre-installed at the time of construction.

Once the cables are connected, you only have to insert the screen and tighten the lower screw.
