Adquio Full Remote Access for Casambi

Introducing a revolutionary solution that fills a need in the Casambi ecosystem: complete, secure and convenient remote access to any Casambi network.

This innovative device offers full connectivity, allowing the user to access all functionalities as if directly connected via Bluetooth. There are no more limits; control, monitor and manage your Casambi networks from anywhere with total confidence and efficiency.

Discover how this breakthrough redefines the Casambi experience, providing a practical, versatile solution designed for the future of smart connectivity.

The current problem

traceability

Dispersed projects

Incompleto

Incomplete access

Speed

Need for travel

Scalable

High operating cost

a ciegas

Nonexistent functions

Client not happy

Committed service and dissatisfied customers

Our solution

After listening to our customers and their constant problem in managing remote casambi networks, we came up with this solution that exactly addresses the problem.

Combines hardware and software for complete and secure remote access access to Casambi networks without complications.

Adquio Full Remote Access for Casambi

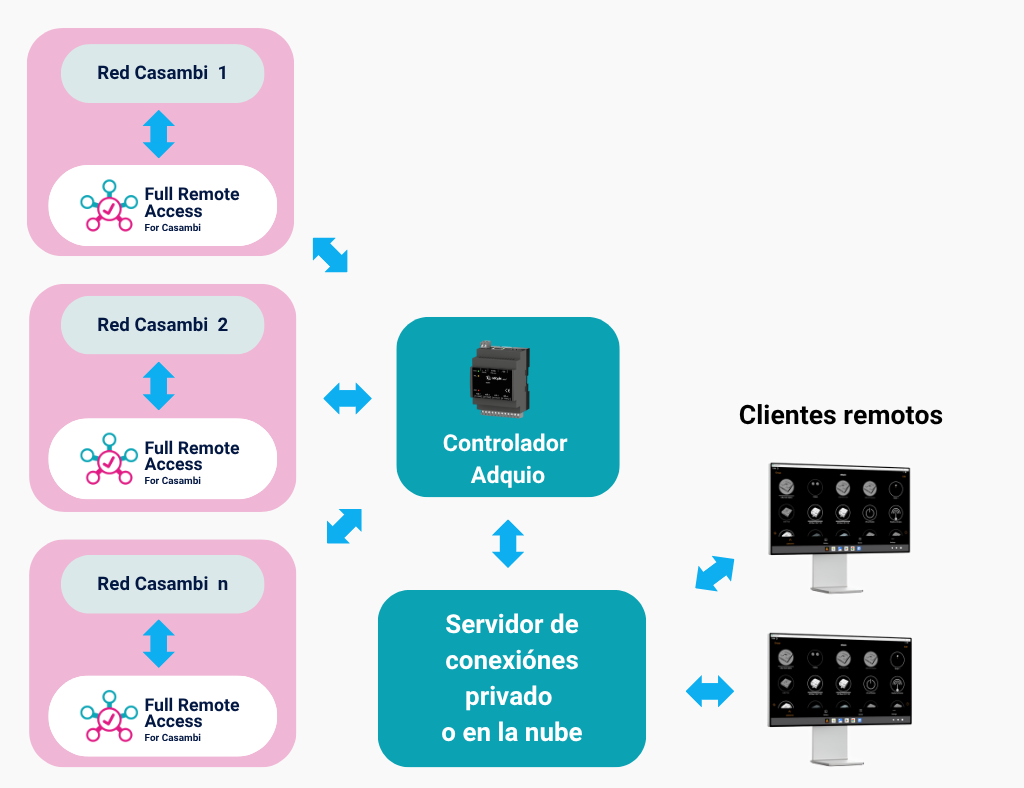

Adquio Full Remote Access for Casambi Architecture

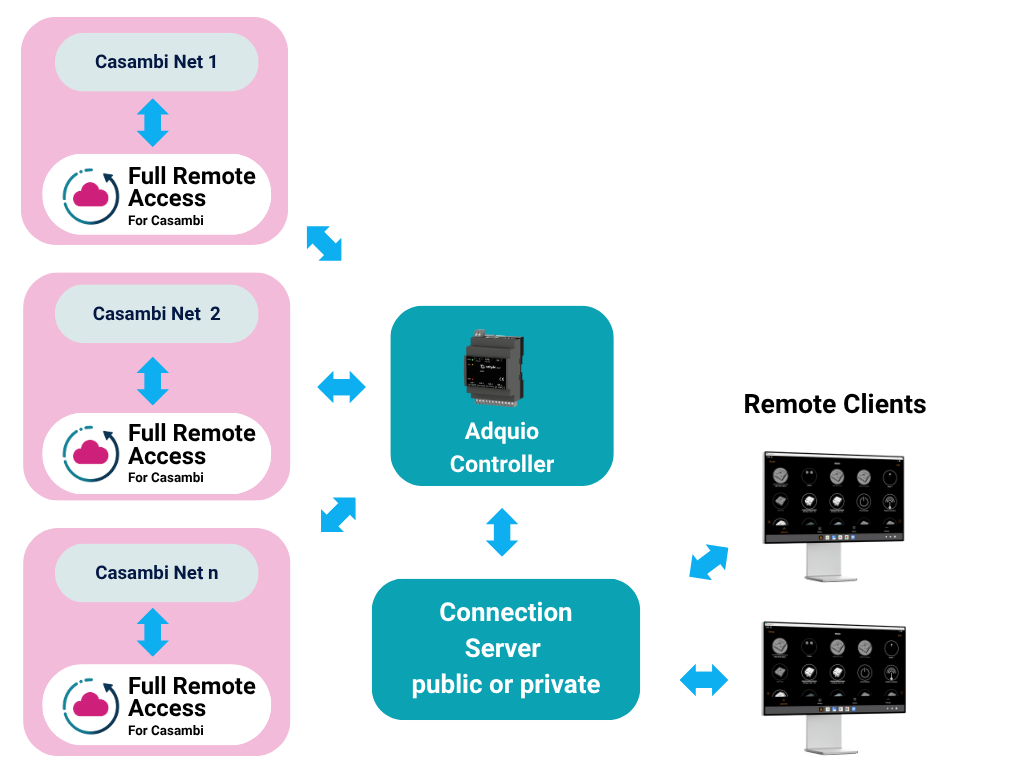

How it works

This product consists of a device and its remote control software.

  • You need a Full Remote Access device connected to each Casambi Network.
  • An Adquio controller acts as the orchestra master for all communications.
  • A cloud (or private) system facilitates two-way communications and overcomes the limitations of firewalls.
  • Remote clients securely connect to the system and gain access to an Android desktop with the Casambi App pre-installed and fully operational.

Hardware features

  • Device running Android 12, with no display or external connections, except for its Ethernet connection that also powers the device.
  • Access to the device via Ethernet, ensuring a reliable and robust long-term connection.
  • POE power supply, which simplifies installation.
  • Casambi App preinstalled.
  • DHCP by default to obtain an IP automatically.
  • It can be configured in Fixed IP.
  • Passive heat dissipation for long-term continuous operation.
  • Integrated Bluetooth 5 for direct connection to the Casambi network.
  • Native access to the device without the need to install any remote control software.
Adquio Full Casambi Remote Access Rotating

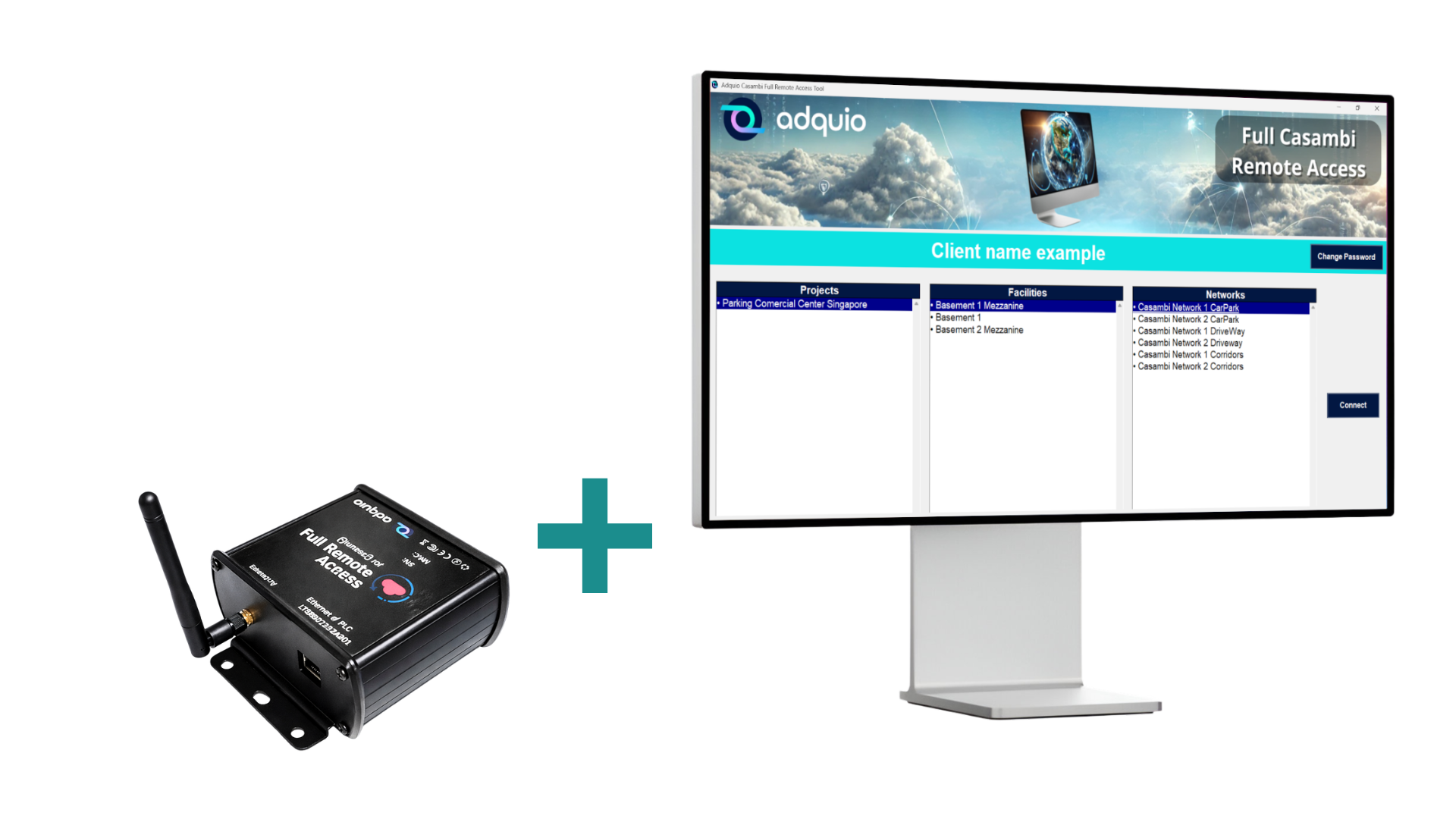

Adquio Full Remote Access for Casambi Software

Centralized control software

    • Centralized control of all your installations from any location to which you have given permission.
    • Access to any building and any network in that building.
    • Full access to all functions of the Casambi APP locally.
    • Access application for Windows and according to requirements also for GNU/Linux and macOS.
    • Service centralization system in the cloud (or private servers).
    • Each installation requires one Adquio family controller (Adquio mini is sufficient). This controller will perform the work of managing communications with all Adquio Full Remote Access for Casambi devices, and the connection to the cloud or corporate server.
    • The organizational structure of your installations is: Partner, Client, project, installation, Casambi network.

System security

  • Communications with the cloud or corporate server are carried out with encrypted tunnels.
  • Communications with customers using the service also use encryption.
  • It is necessary to grant a personalized security certificate to each user authorized to use the service.
Adquio Full Casambi Remote Access Security

A host of advantages

Remote access

Full remote access without travel

All APP functions in local

Faster resolution. Satisfied customers

Multisite management

Roles and permissions

Isolation by project/location

Lower operating cost

End-to-end security and encryption

Adquio Full Casambi Remote Access connections

Device data

  1. Gigabit network connection with POE (IEEE802.3af/at).
  2. Ventilation grids.
  3. Passive heat sink.

Technical specifications

Energy

Power supply
POE over Ethernet cable, supports IEEE802.3af/at standard

Maximum consumption

10 W

Power

Processor

Quad-core ARM Cortex-A55 CPU, up to 2.0 GHz

RAM

4Gb DDR4 LPDDR4X

Connectivity

Ethernet port

1 (1 Gb/s)

WiFi
802.11a / B/G/N/AC 2.4/5.0GHz

Bluetooth

5.0

Storage

MMC

32 Gb

Certifications

CE

EN 55032:2015/A11:2020
EN 55035:2017/A11:2020
EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3-3:2013/A2:2021

EMC

EN 55032:2015/A11:2020
EN 55035:2017/A11:2020
EN IEC 61000-3-2:2019/A1:2021
EN 61000-3-3-3:2013/A2:2021

FCC

FCC Part 15 Subpart B

RoHS

IEC 62321-3-1: 2013
IEC 62321-5: 2013
IEC 62321-4:2013+A1:2017
IEC 62321-6:2015
IEC 62321-7-1:2015
IEC 62321-7-2:2017
IEC 62321-8:2017
