Get all the data from your Adquio controllers to any BACnet IP system.

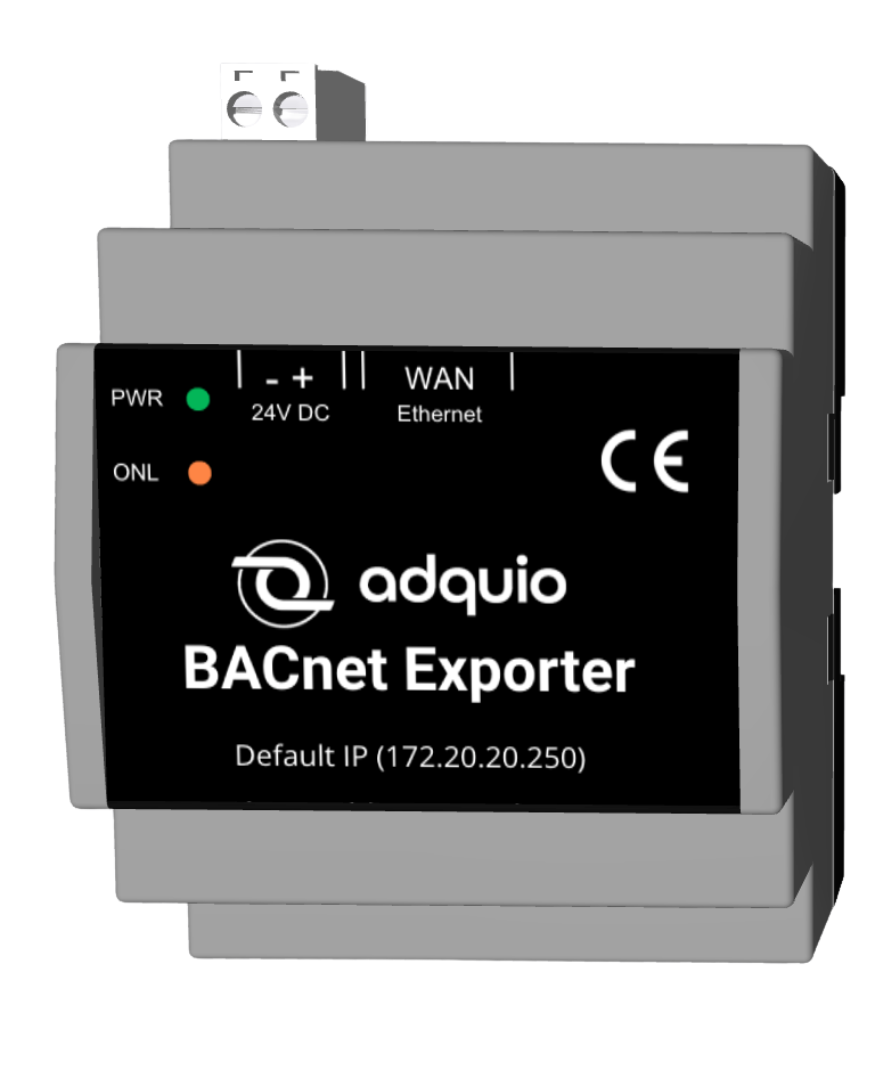

Adquio BACnet Exporter
By connecting this module to one of the Adquio controllers, you will be able to integrate it with any system that requires reading information through the BACnet IP protocol.
Of course, you will be able to scan this device to obtain quickly and easily all the variables available, greatly facilitating the process and avoiding errors.
With its super-intuitive web interface, you will select the variables you want to share from your Adquio controller in a matter of seconds.
CONNECTIONS
Adquio BACnet Exporter

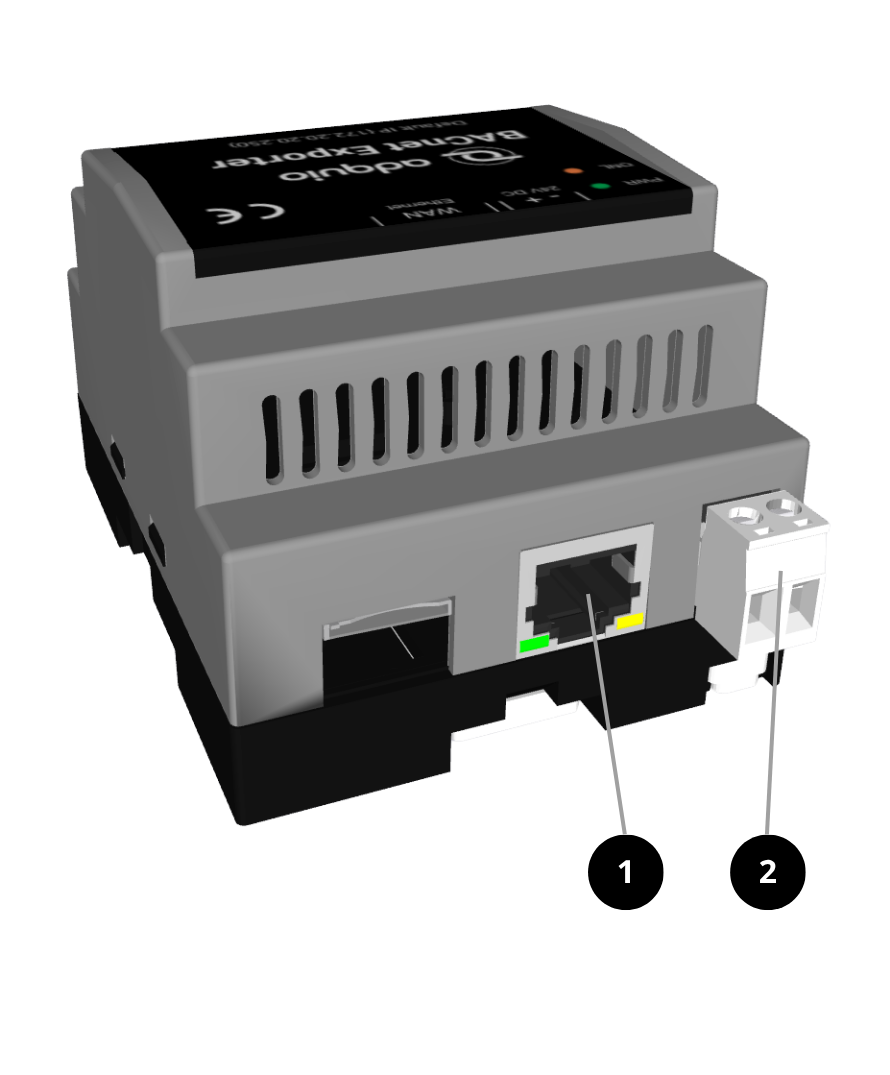

Rear connectors
- Ethernet connector
- 24V DC power input.

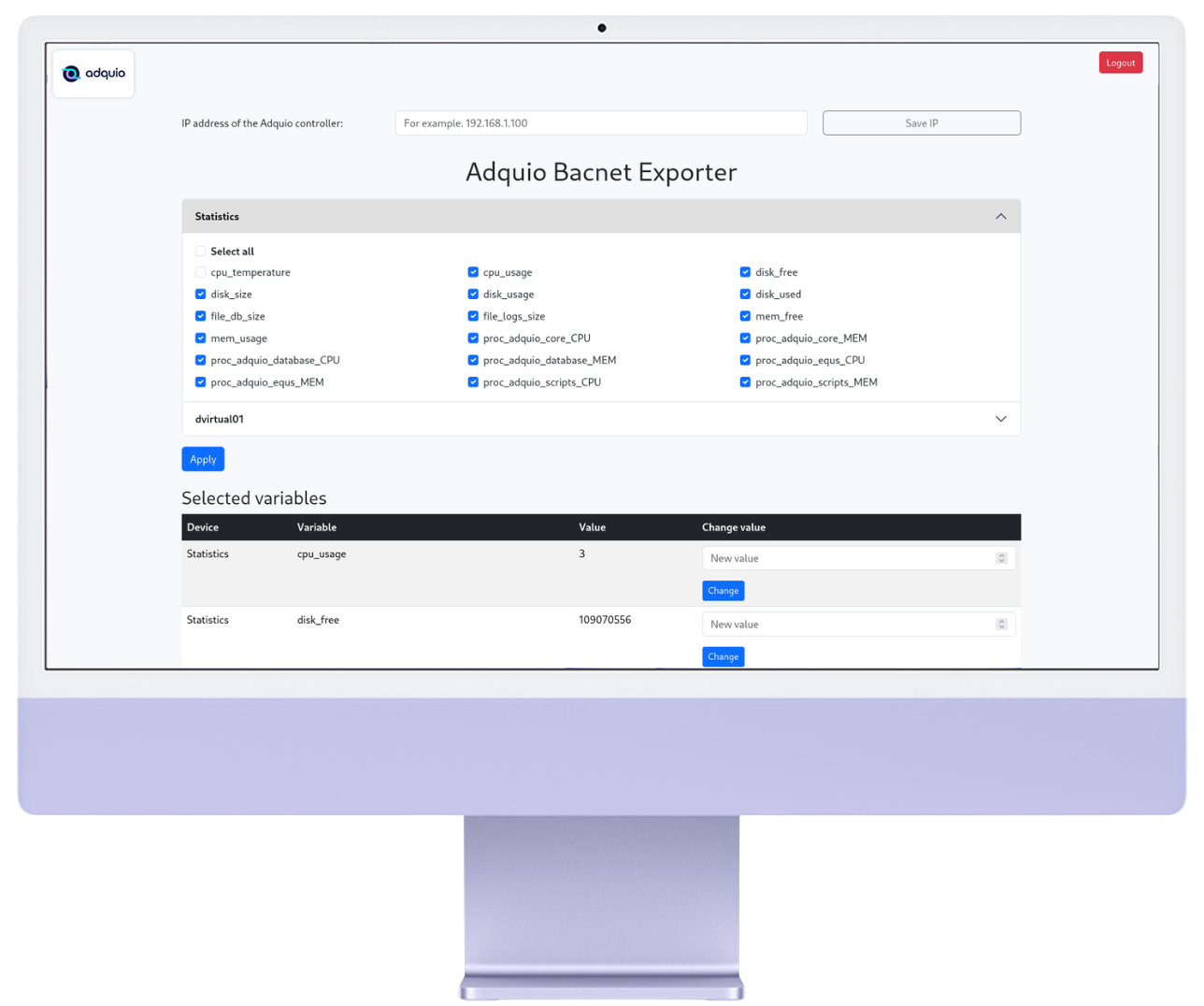

The interface
Like all controllers in the Adquio ecosystem, the BACnet exporter module has an integrated web interface. What does this mean?
Means that to configure it and start exporting, all you need is a browser. No installations. No complications.
Once you log in, you will be greeted by a clear and functional interface, divided into two main areas:
At the top, you will see all the devices and variables available on your Adquio controller.
At the bottom, the variables that you have already selected to export will appear.
Exporting is as easy as clicking:
Select the variable or the entire device you wish to export… and you are done!
From that moment on, the data is already being exported via BACnet, automatically.
So simple. That powerful.
Like everything at Adquio: designed to make your life easier.
Technical specs
Energy
Power supply
24VDC
Consumption
15mA
Connectivity
1 100Mb/s Ethernet port
BACnet IP compatible
Control
Indicator LEDs
2; Power, Online
Certifications
Safety and Health
EN ISO 13849-1: 2015
EN ISO 13849-2: 2012
EN 62061: 2005 + A1: 2013 + A2: 2015
EN 60950-1: 2006
EN 62311: 2008
EMC
EN 61000-6-4: 2007 + A1: 2011
EN 61000-6-2: 2005
ETSI EN 301 489-1 v2.2.0
ETSI EN 301 489-17 v3.2.0
RoHS
EN 50581: 2012
