The advanced expansion module for control of machines, signals and technical systems

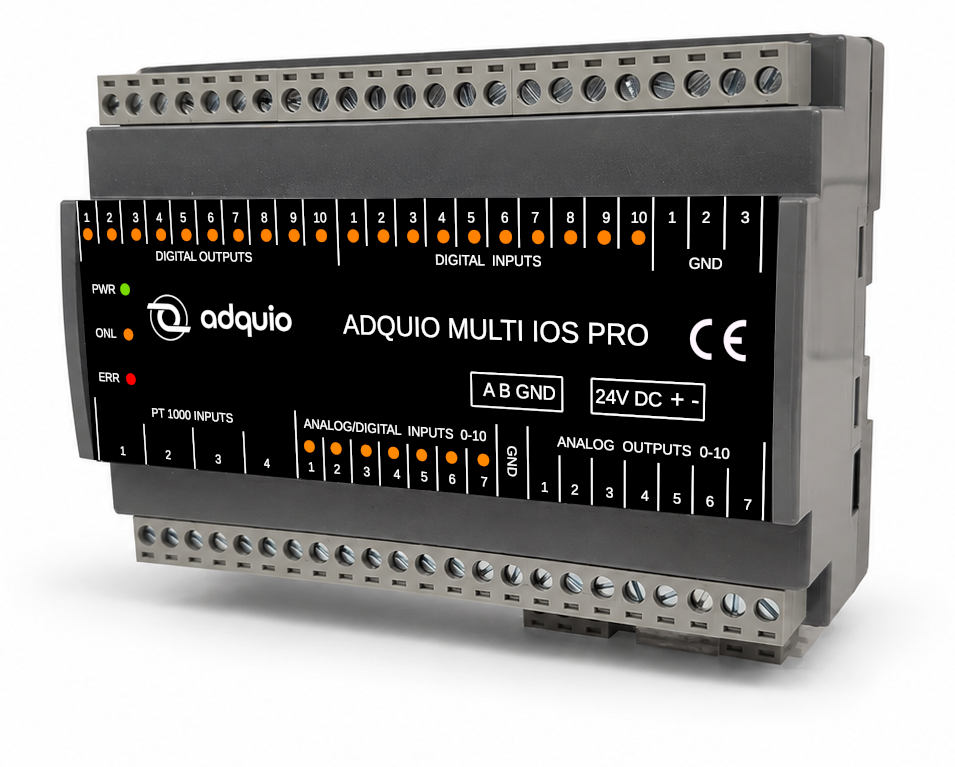

Adquio multi IOs pro modbus module

Adquio Multi IOs Pro Modbus Module is an input and output module designed to expand the control capacity of technical installations, air conditioning, machinery, electrical panels, measurement systems, analog signals and distributed automation.

Thanks to its 10 digital inputs, 10 digital outputs, 7 analog inputs, 7 analog outputs and 4 inputs for PT1000 probes, it allows centralizing in a single device the reading of signals, the control of actuators and the integration of physical variables such as temperature, status, setpoints, levels, alarms or process signals.

Its Modbus RTU communication allows easy integration with Adquio controllers, PLCs, SCADA systems, BMS or any compatible platform, making it a flexible solution for projects where it is necessary to expand control points without adding unnecessary complexity.

ContactRequest presentation

CONNECTIONS

Adquio multi IOs modbus module

Front connectors and top indicators

  1. Power indicator.
  2. Indicator of correct connection with the master.
  3. Error indicator.
  4. 4 pairs of contacts for 4 PT1000 probes.
  5. 7 Inputs that can be used as analog 0-10V and as digital, they support a voltage range from 0 to 24 volts, when read as digital 1 is assumed when passing 4.7V.
  6. Reset button to return the device to factory default, used to reset to known values of 9600 N 8 1, for Modbus communication.
  7. 485 master connector with 3 contacts A, B and GND. You use them if you want to connect a control display or thermostat directly to this device. (Designed for cases in which this device is used in a pre-programmed way to perform a very specific function, controlling a machine).
  8. GND connection for analog outputs.
  9. 4 Inputs that can be used as analog and digital, admit a voltage range from 0 to 24 volts, when read as digital, 1 is assumed when passing 4.8V.
  10. Power connection, 24V DC

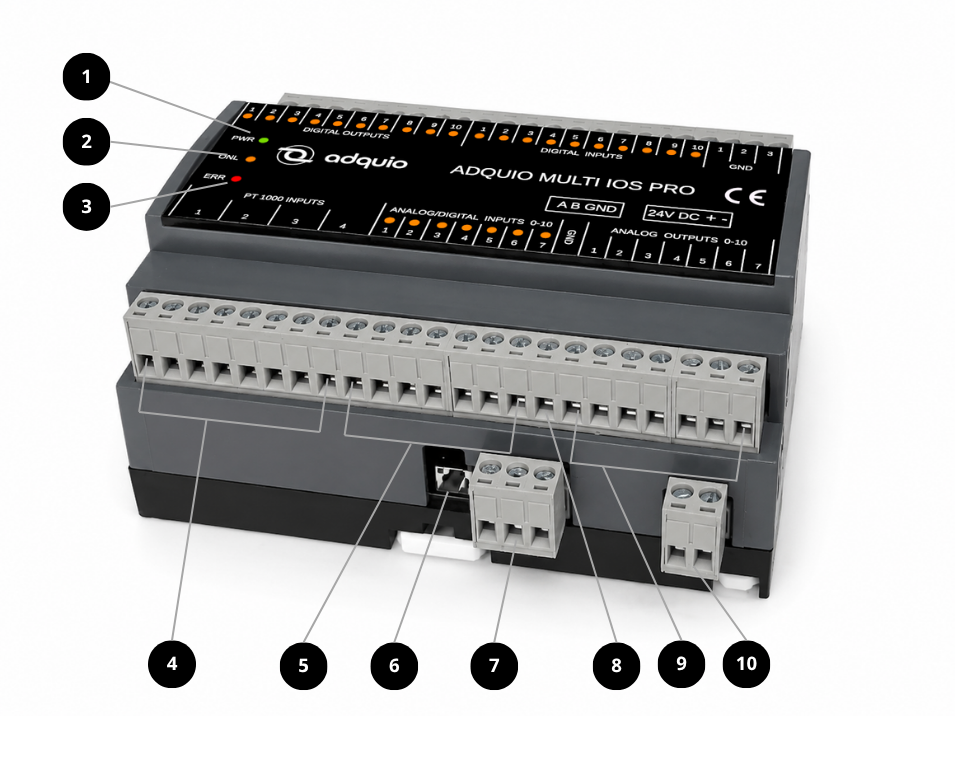

Adquio Multi IOs Pro Front

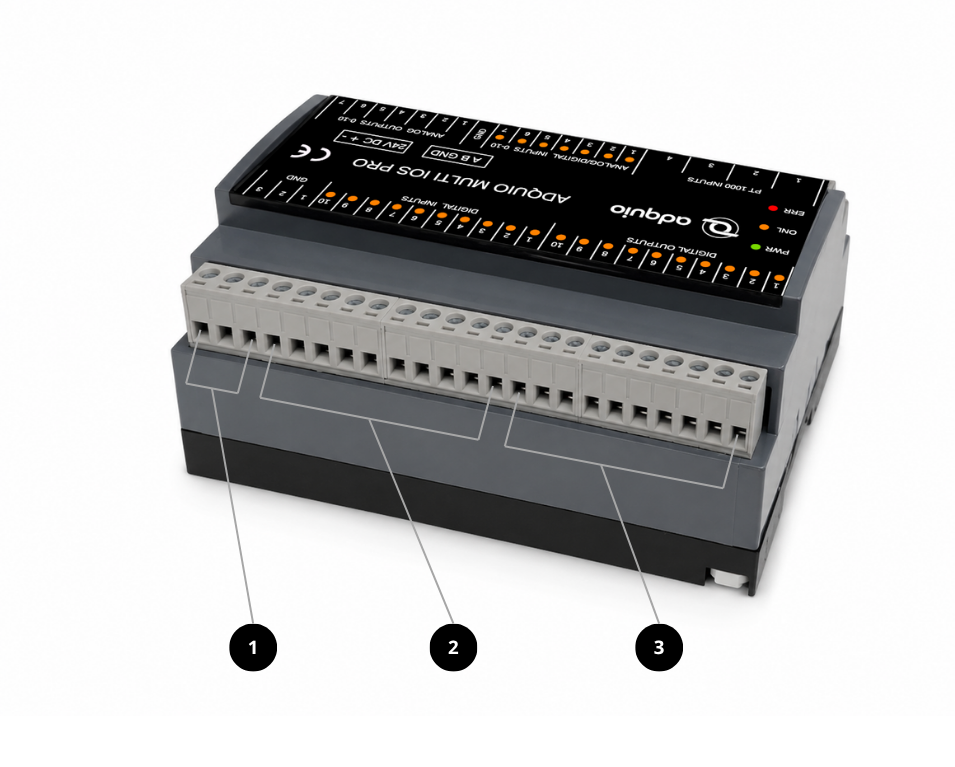

Adquio Multi IOs Pro Back

Rear connectors

  1. GND, ground or negative pole connectors, useful for nearby digital outputs.
  2. 10 Inputs that can be used as analog and digital, they support a voltage range from 0 to 24 volts, when read as digital, 1 is assumed when passing 4.7V.
  3. 10 0-24V digital outputs with power transistors to handle relays.

Technical specs

Energy

Power supply
24VDC

Consumption

130mA

Connectivity

Port 485 slave

Compatible with Modbus RTU 9600-19200 bps). It will allow you to connect this device to any controller that supports Modbus RTU, including any of the acquired models.

Inputs

Analog and digital inputs

  • 7 analog or digital inputs configurable by the user according to the needs of the installation.
    • When they behave as digital you will get a 1 from 4.8 Volts.
    • When they behave as analog they can work in the range of 0-10V or 0-24V
    • For 4-20mA inputs use our DIN rail converter.
  • 10 digital inputs
  • 4 inputs for 2-wire PT1000 probes.

Outputs

Digital outputs

10 24v digital outputs (with power transistors)

Analog outputs

7 Analog outputs 0-10V

Control

Indicator LEDs
3; Power, Online and Error

PDF Datasheet

Certifications

Safety and Health

EN ISO 13849-1: 2015

EN ISO 13849-2: 2012

EN 62061: 2005 + A1: 2013 + A2: 2015

EN 60950-1: 2006

EN 62311: 2008

EMC

EN 61000-6-4: 2007 + A1: 2011

EN 61000-6-2: 2005

ETSI EN 301 489-1 v2.2.0

ETSI EN 301 489-17 v3.2.0

RoHS

EN 50581: 2012
