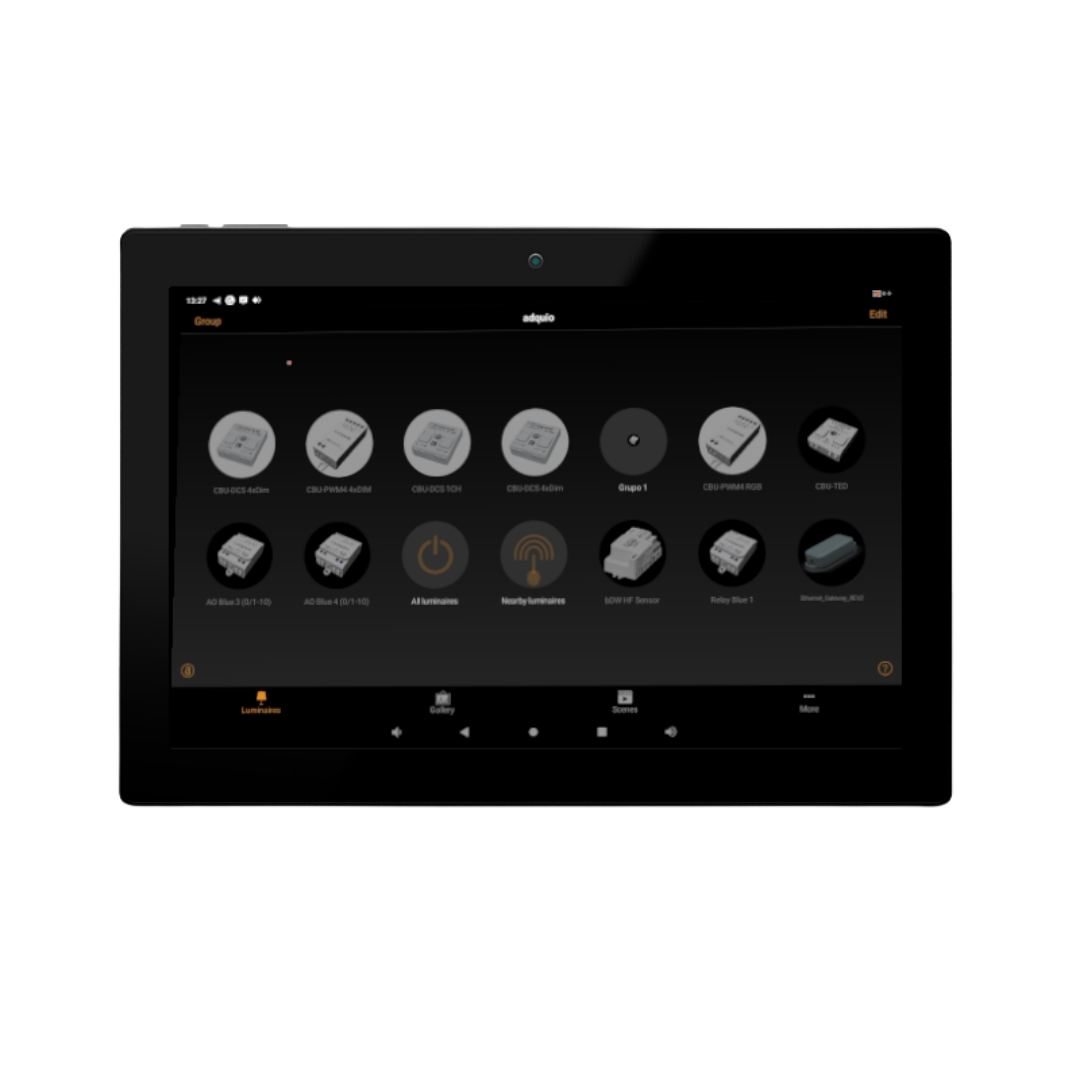

Adquio Wall Screen 10

High quality touch screen designed to work continuously without interruption 24/7. Due to its features, it is perfect to act as HMI, and as support for the Casambi control app. It is installed in the standard space of a European or American switch. Facilitates Casambi installations by being able to interact directly with it without the need for a cell phone.

Once the installation is finished, the customer can activate his scenes from this screen, or he can have a customized HMI, where he will only have access to the necessary controls of his installation.

When working with a custom HMI it takes the data from an Adquio controller and allows a completely free design of the user interface.

Additionally, being an Android device, you can use it with your Alexa APP, Home Assistant, etc. without problems and enjoy a device that protrudes only 13 mm from your wall, including the fixing system, and also as it is powered from the back, it is installed in a totally clean way and without visible cables.

Contact Request presentation

SPECIFICATIONS

Adquio Wall Screen 10

General data

10-inch screen.
1280 X 800 pixels.
LED backlighting.
IPS technology.
Capacitive touch panel.
High-quality construction.
Android 13 and Play Store.
Casambi app preinstalled.
WiFi N 2.4/5 GHz and Bluetooth version 4.2.
100 Mb/s Ethernet connection with IEEE 802.3 at/af POE.
110-240V AC or POE power supply.
Vertical or horizontal installation.
Wall mounting with a recessed European or American mounting box.
It protrudes from the wall by only 13 mm, and this includes the anchoring system.
Designed for continuous operation.

Front data

Power button
Volume controls
Front camera
Microphone

Rear and sides

Alternating direct current power supply 110-240 V
Port 485 (For future use)
Ethernet 100 Mb/s POE IEEE 802.3 at/af.
USB-C for configuration and firmware upgrades
Screw for fastening to support

Installation

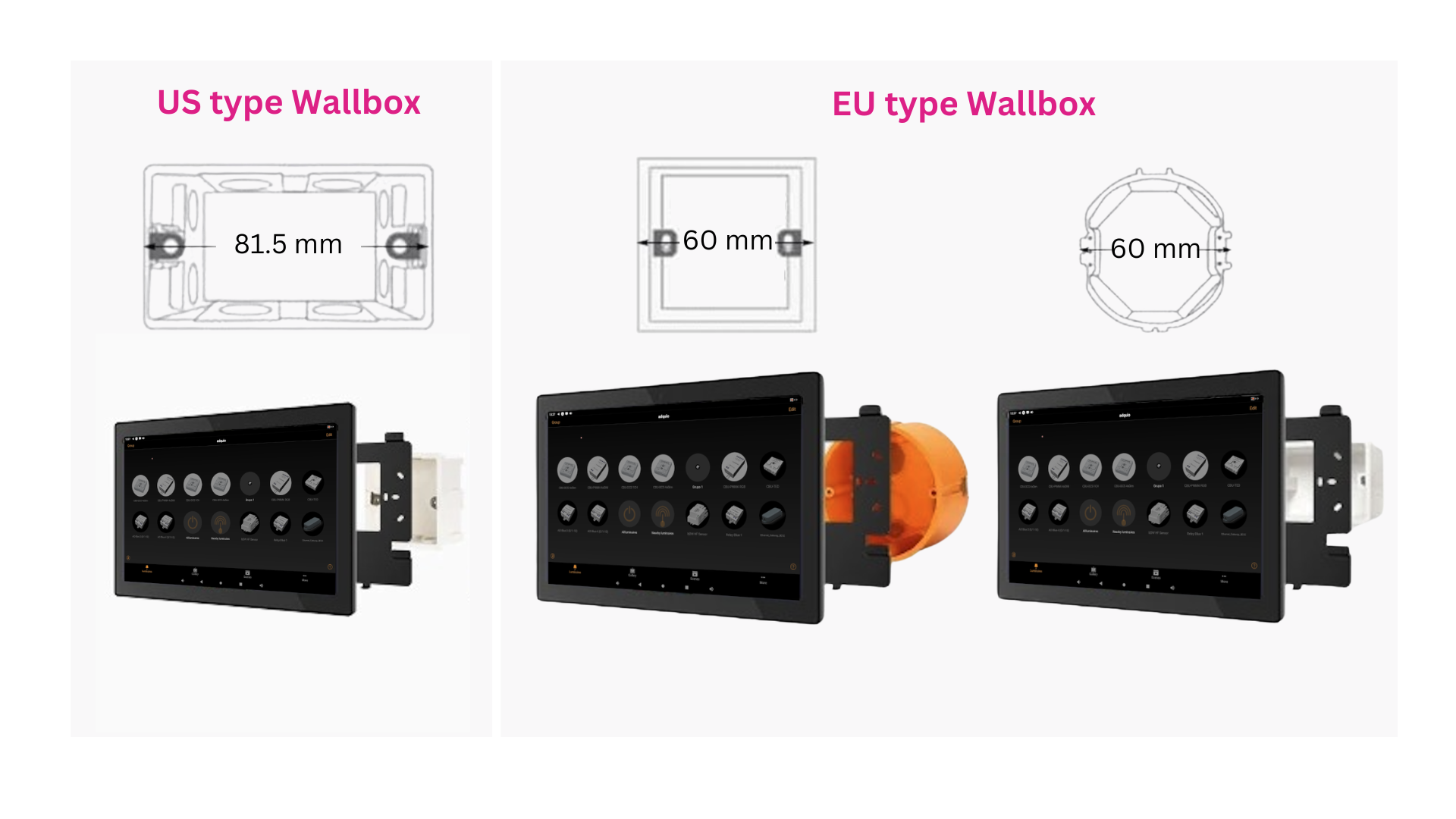

Installation is elementary: within a standard European or American switch with a 60 or 81,5 mm box between horizontal screws, you can install the display bracket, the black metal part.

Then you have two options:

Simply power it at 110-240 ACV, and you are ready to go. The device can connect to your wifi, and will connect via Bluetooth to your Casambi network.
Provide you with a wired network connection with POE. This is the most reliable option, but also the most complex. This is a practical option for new construction where the network cables are already pre-installed at the time of construction.

Once the cables are connected, you only have to insert the screen and tighten the lower screw.
